Product Summary

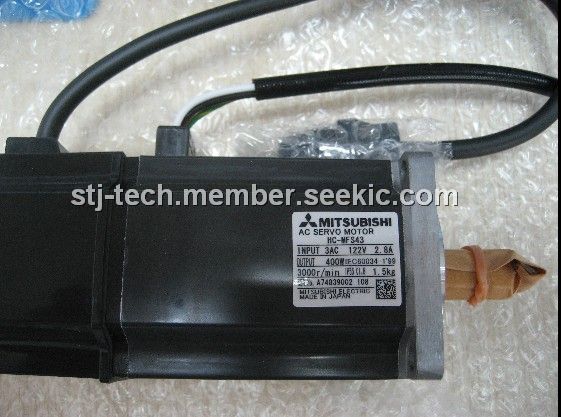

The HC-MFS43 is a Servo Motor with Ultra-low inertia and small capacity.

Parametrics

General specifications: (1)Power facility capacity:0.9kVA; (2)rated speed:3000r/min; (3)maximum speed:4500r/min; (4)permissible instantaneous speed:5175r/min; (5)power rate at continuous rated torque:116.55kW/s; (6)rated current:2.8A; (7)maximum current:9.0A; (8)ambient temperature:0℃ to 40℃; (9)storage temperature:-15℃ to 70℃.

Features

Features: (1)High Functionality, High Performance; (2)High-resolution Encoder 131072p/rev (17bit); (3)High-performance CPU Incorporated for Improved Response; (4)Absolute encoder is Standard Equipment; (5)SSCNET, high-speed serial bus compatible: B type.

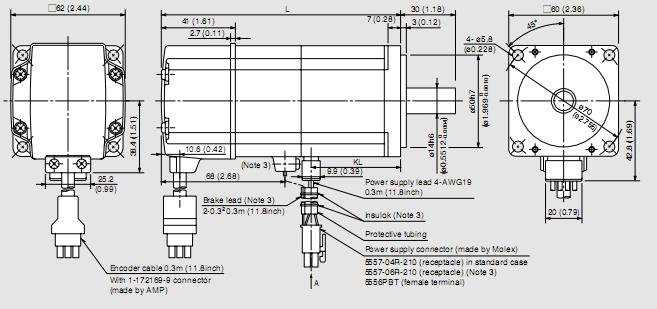

Diagrams
