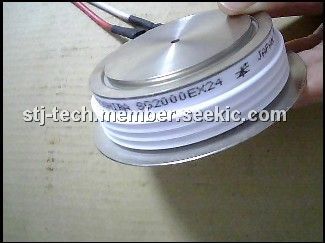

The SG2000EX24 is a gate turn-off thyristor.
Parametrics
Maximum ratings: (1)repetitive peak off-state voltage: VDRM=2500v; (2)repetitive peak reverse voltage, VRRM: 16v; (3)peak turn-off current, ITGQM: 2000A; (4)R.MS on-state current, IT(RMS): 1050A; (5)peak one cycle surge on-state current, ITSM: 14000A; (6)critical rate of rise of on-state current, di/dt: 300A/us; (7)peak forward gate current, IFGM: 70A; (8)average forward gate power dissipation, PFG(AV): 14W; (9)average reverse gate power dissipation, PRG(AV): 120W; (10)R.MS gate current, IG(RMS): 42A; (11)peak reverse gate voltage, VRGM: 16v; (12)operating junction temperature range, Tj: -40 to 125℃; (13)storage temperature range, Tstg: -40 to 150℃; (14)mounting force: 19.6±2.0 kN.
Features
Features: (1)repetitive peak off-state voltage: VDRM=2500v; (2)R.MS on-state current: IT(rms)=1050A; (3)peak turn-off current: ITGQM=2000A; (4)critical rate of rise of on-state current : di/dt=300A/us; (5)critical rate of rise of off-state voltage: dv/dt=1000v/us.
