Product Summary

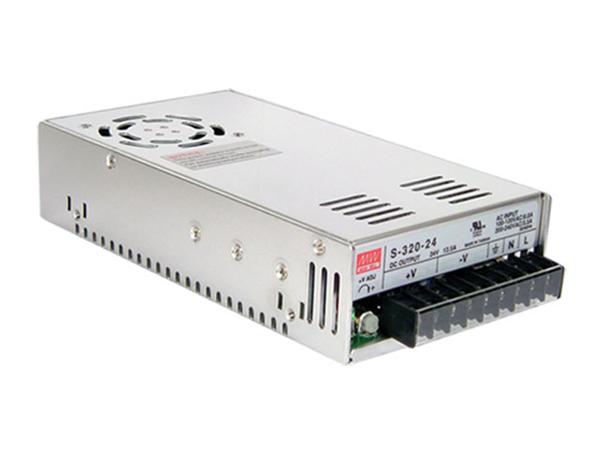

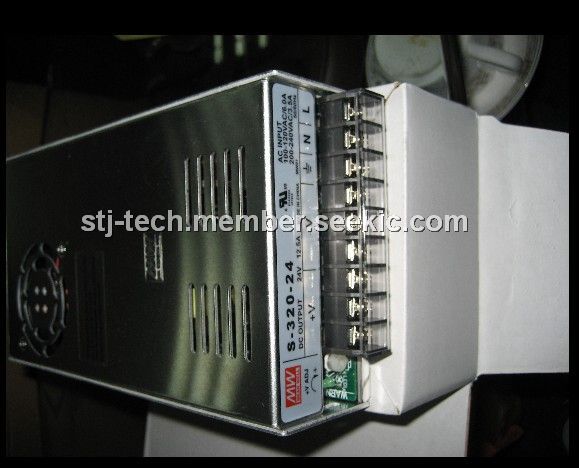

The S-320-24 is a 320W Single Output Switching Power Supply.
Parametrics
General specifications: (1)DC voltage:24V; (2)rated current:12.5A; (3)current range:0A to 12.5A; (4)rated power:300W; (5)voltage adj. range:20V to 26.4V; (6)line regulation:0.5%; (7)load regulation:0.5%; (8)setup, rise time:2000ms, 20ms at full load; (9)hold up time (typ.):24ms at full load; (10)voltage tolerance:1.0%.
Features
Features: (1)AC input range selectable by switch; (2)Protections: Short circuit/Overload/Over voltage/Over temperature; (3)Forced air cooling by built-in DC fan; (4)Cooling Fan ON-OFF auto control; (5)100% full load burn-in test; (6)Fixed switching frequency at 90KHz; (7)2 years warranty.

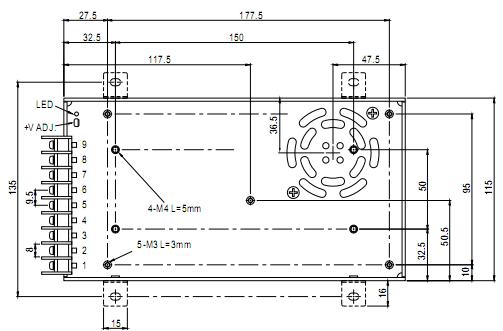

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() S-320-24 |
![]() Mean Well |
![]() Linear and Switching Power Supplies 320W 24V 12.5A |
![]() Data Sheet |
![]()
|
|
||||||||||||
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
![]() |
![]() S-320 |
![]() Mean Well |
![]() Linear and Switching Power Supplies |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() S-320-12 |
![]() Mean Well |
![]() Linear and Switching Power Supplies 300W 12V 25A |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() S-320-13.5 |
![]() Mean Well |
![]() Linear and Switching Power Supplies 297W 13.5V 22A |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() S-320-15 |
![]() Mean Well |
![]() Linear and Switching Power Supplies 300W 15V 20A |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() S-320-24 |
![]() Mean Well |
![]() Linear and Switching Power Supplies 320W 24V 12.5A |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() S-320-27 |
![]() Mean Well |
![]() Linear and Switching Power Supplies 297W 27V 11A |
![]() Data Sheet |
![]()
|
|
